Heartland Apartments

Project Program: A Developer who specializes in Transit Oriented, Multi-family Residential Development has retained you to provide design services in regards to an Apartment Complex that he/she wishes to construct on an approximately 10.12 acre site in Edgewood (Brentwood), New York. The requested Apartment allocation is per the chart below:

chart 1.png

For the exclusive use of the tenants and their guests, please design a one story Community Building of approximately 3,000 square feet. Within the building provide a Community Room, Office, Mens & Womens Rooms, Kitchenette Area and Storage / Mechanical Rooms.

Site Design

site plan.png

Building Plans

first floor.png
second floor.png

Elevations


Unit Plans

unit plans.png

Sections


Final Building

Community Building

community building.png

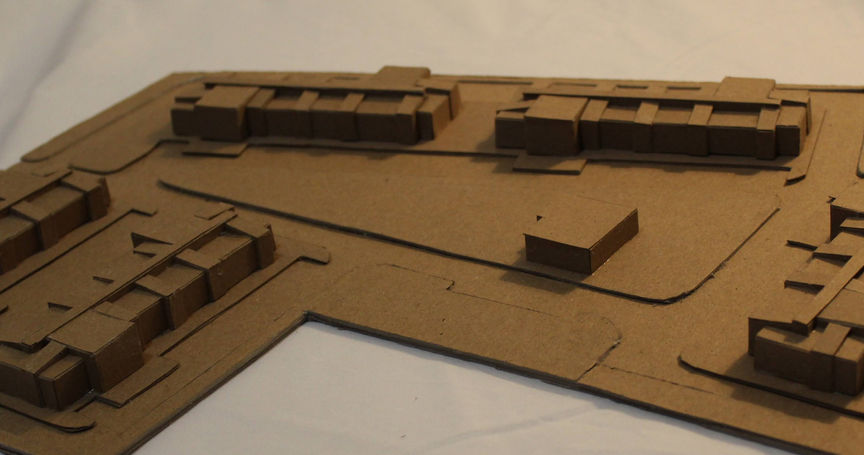

Model
